Coppered Steel Wire

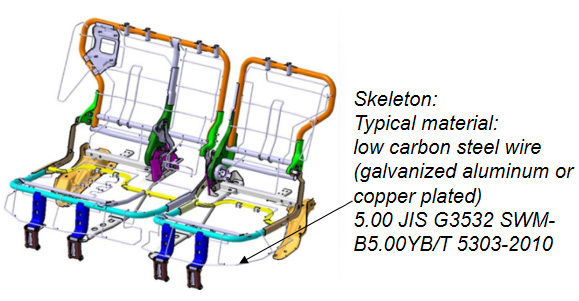

Application：Used in automotive seat frames (front and rear), offering excellent formability, weldability, and anti-corrosion performance

MOQ: 500KG

Contact

E-mail: peter@wx-hfkj.com

Classification

Coated Steel Wire

Application

Product Inquiry

Technical Parameter

Attribute	Details
Wire Diameter	2.0 – 6.0 mm
Material	10, 15, 20; S10C, S20C; C9D, C10D, C20D, etc.
Strength Grade	SWM-B, 550 MPa, 600 MPa, 650 MPa, 800 MPa, etc.
Surface Condition	Copper plated (can also be available with zinc or zinc-aluminum coating)
Standards	JIS G 3532, GB 3206-82, YB/T 5303-2010, etc.
Coiling Method	Spider type, Z2/Z3 spool-free, wheel type
Brand	OEM / Custom
Form	Coil wire / Straightened wire / Custom packaging

Keywords:

Coppered steel wire

Coppered

Automotive Seats
